Smart Wireless Horticulture Control System

---

The BILLION Smart Wireless Horticulture Control System is an advanced Bluetooth Mesh and RS-485 based lighting management platform designed specifically for commercial greenhouses, vertical farms, and indoor cultivation facilities.

The system enables intelligent control of multi-channel LED grow lights through a stable wireless mesh network, allowing users to manage individual fixtures, groups, or entire cultivation zones from a mobile application or external control platform.

Key Features

• Bluetooth Mesh wireless communication with self-organizing network architecture

• Supports up to 6 independent RS-485 control channels or 2 channels of 0-10V dimming output

• Individual, group, and zone-based lighting control

• 0-100% smooth dimming with 255-level brightness resolution

• Built-in timer and scheduling functions for automated photoperiod management

• Compatible with full-spectrum, multi-channel horticulture lighting systems

• Supports customized spectrum recipes for different crop growth stages

• Compact IP55-rated enclosure suitable for greenhouse and vertical farming environments

• M12 waterproof locking connectors for reliable field installation

• Remote firmware upgrade and easy device commissioning via mobile APP

Intelligent Crop Lighting Management

The system allows growers to create customized lighting recipes by independently controlling white, blue, deep red, and far-red channels. Different spectrum combinations and dimming schedules can be applied according to crop type, growth stage, or production area, maximizing yield and improving crop quality.

Open Integration Platform

The controller supports RS-485 communication architecture and can be integrated with greenhouse climate computers and third-party automation systems. Customized interfaces for Modbus RTU, Modbus TCP, BACnet, and API-based platforms are available upon request.

Technical Specifications

• Input Voltage: 12V DC ±5%

• Communication: Bluetooth Mesh + RS-485

• RS-485 Channels: 1-6

• 0-10V Output Channels: 1-2

• Brightness Resolution: 255 Levels

• Protection Rating: IP55

• Operating Temperature: 0°C to 40°C

• Storage Temperature: 0°C to 60°C

• Humidity Range: 20% to 85% RH

• MTBF: 20,000 Hours

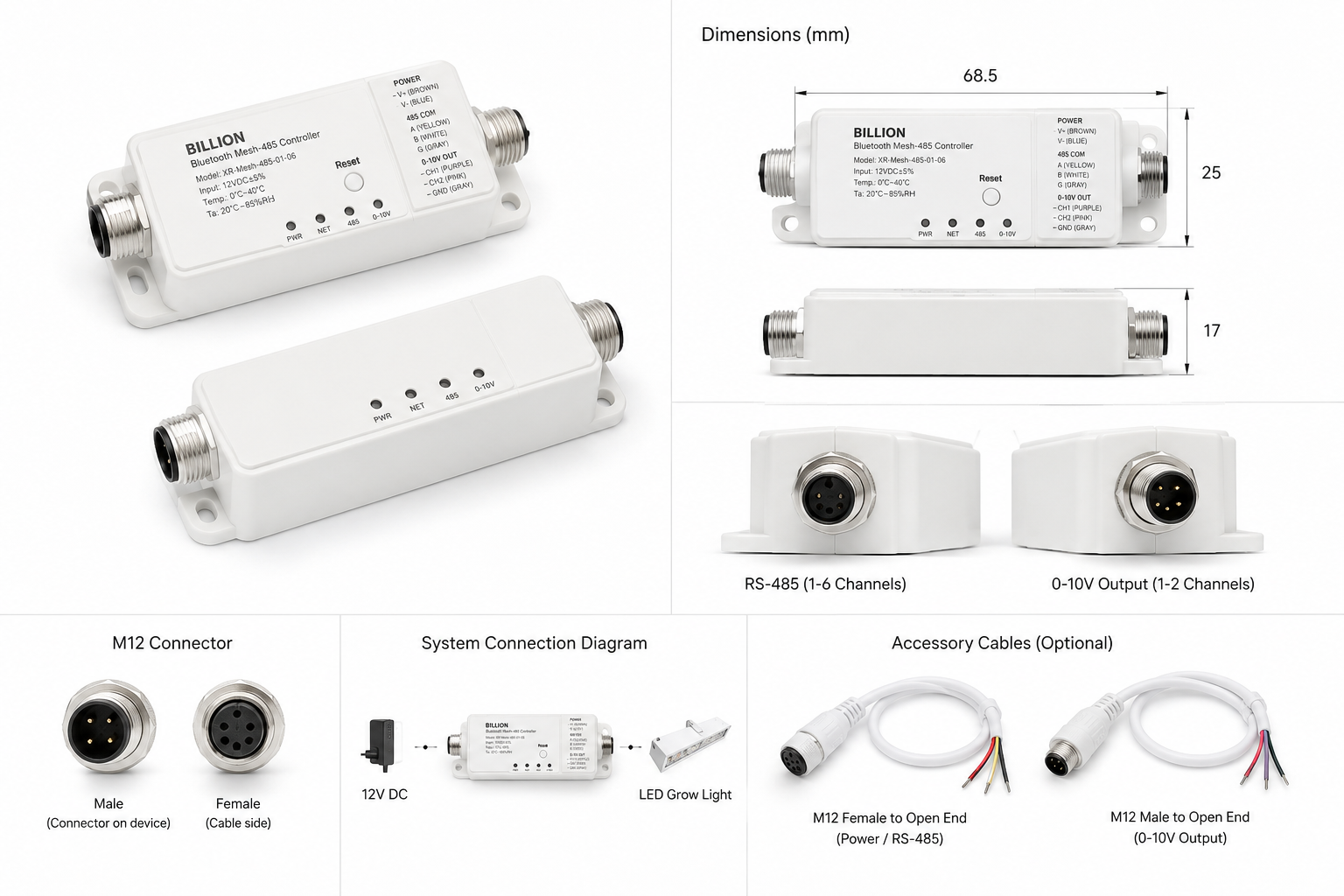

• Dimensions: 68.5 × 25 × 17 mm

Typical Applications

• Vertical Farming

• Commercial Greenhouses

• Hydroponic Systems

• Seedling Production

• Cannabis Cultivation

• Research Facilities

• Plant Growth Chambers

The BILLION Smart Wireless Control System provides growers with a flexible, scalable, and future-ready solution for intelligent horticultural lighting management, reducing installation complexity while enabling precise crop-specific lighting strategies.

---
